Timken H852849 – H852810 (H852810EB)
Tapered Roller Bearings - 2TS-DM (Matched Bearing Assembly, Direct Mount)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
H852849 – H852810 (H852810EB)
Specifications
Cone Part Number
H852849
Cup Part Number
H852810
Related Assembly Number(s)
H852849-90015
Outer Spacer Part Number
H852810EB
Design Unit
Inch

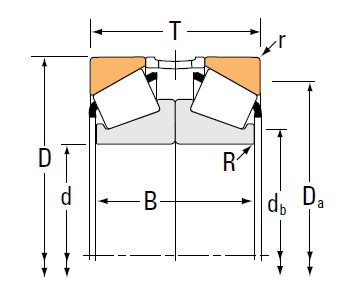

Dimensions
d - Bore
266.7 mm
D - Cup Outer Diameter
444.5 mm
T - Width
241.3 mm
B - Width
234.95 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.5 mm
r - Cup Backface "To Clear" Radius2
6.35 mm
db - Cone Backface Backing Diameter
315 mm
Da - Cup Frontface Backing Diameter
423.93 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
473000 N
C1 - Dynamic Radial Rating (1 million revolutions)4
3180000 N
C5
466000 N
C906
823000 N
Factors
K - Factor7
1.01
e - ISO Factor8
0.58
Y1 - ISO Factor9
1.17
Y2 - ISO Factor10
1.75
