Timken LM451347 – LM451310 (LM451310EC)
Tapered Roller Bearings - 2TS-DM (Matched Bearing Assembly, Direct Mount)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
LM451347 – LM451310 (LM451310EC)
Specifications
Cone Part Number
LM451347
Cup Part Number
LM451310
Related Assembly Number(s)
LM451347-90086
Outer Spacer Part Number
LM451310EC
Design Unit
Inch

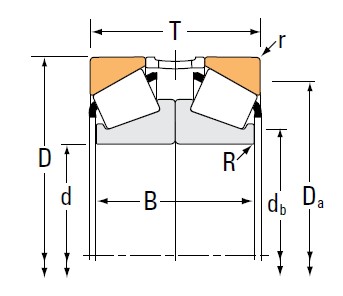

Dimensions
d - Bore
264.975 mm
D - Cup Outer Diameter
355.6 mm
T - Width
114.3 mm
B - Width
124 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.5 mm
r - Cup Backface "To Clear" Radius2
3.30 mm
db - Cone Backface Backing Diameter
284 mm
Da - Cup Frontface Backing Diameter
343.41 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
165000 N
C1 - Dynamic Radial Rating (1 million revolutions)4
1110000 N
C5
102000 N
C906
288000 N
Factors
K - Factor7
1.62
e - ISO Factor8
0.36
Y1 - ISO Factor9
1.87
Y2 - ISO Factor10
2.79
