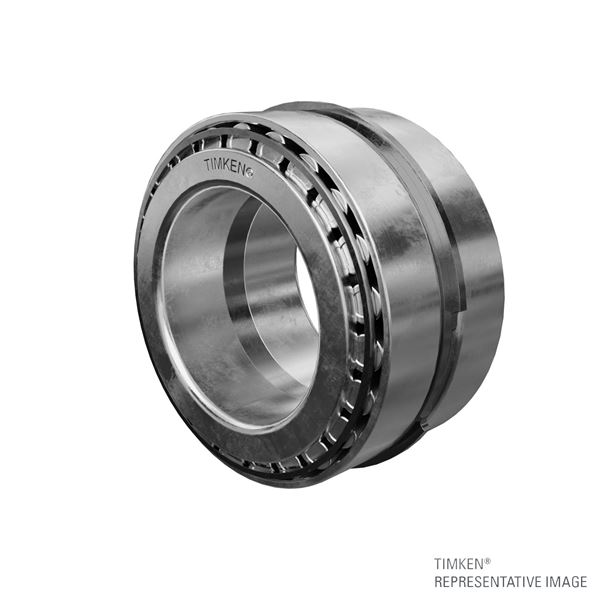

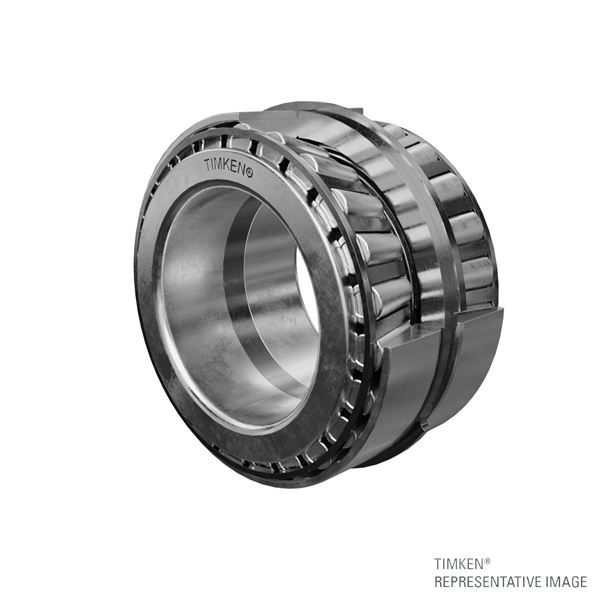

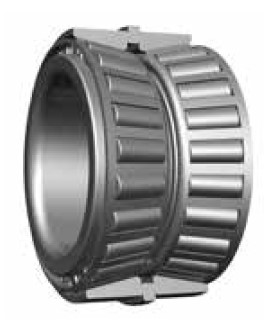

Timken LL217849 – LL217810 (LL217849XB – K143253R)
Tapered Roller Bearings - 2S (Matched Bearing Assembly, with snap ring spacer)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
LL217849 – LL217810 (LL217849XB – K143253R)
Specifications
Cone Part Number
LL217849
Cup Part Number
LL217810
Inner Spacer Part Number
LL217849XB
Outer Spacer Part Number
K143253R
Design Unit
Inch

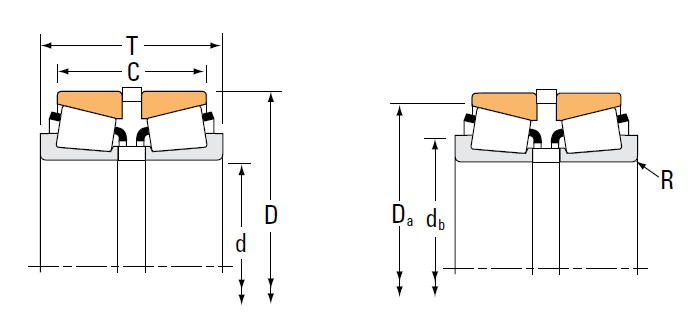

Dimensions
d - Bore
88.900 mm
D - Cup Outer Diameter
121.442 mm
T - Width
35.702 mm
C - Width
27.762 mm
Snap Ring Diameter
126.14 mm
Snap Ring Width
5.54 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.520 mm
r - Cup Backface "To Clear" Radius2
1.52 mm
db - Cone Backface Backing Diameter
97 mm
Da - Cup Frontface Backing Diameter
117.10 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)
15400 N
C1 - Dynamic Radial Rating (1 million revolutions)3
104000 N
C4
8730 N
C905
26800 N
Factors
K - Factor6
1.77
e - ISO Factor7
0.33
Y1 - ISO Factor8
2.04
Y2 - ISO Factor9
3.04
