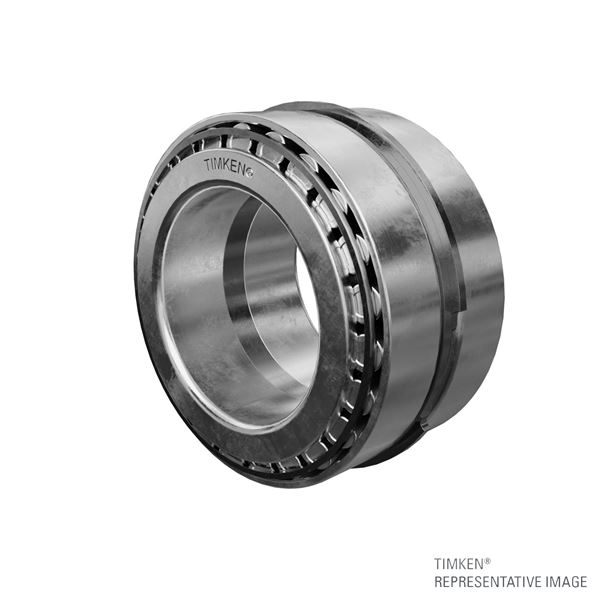

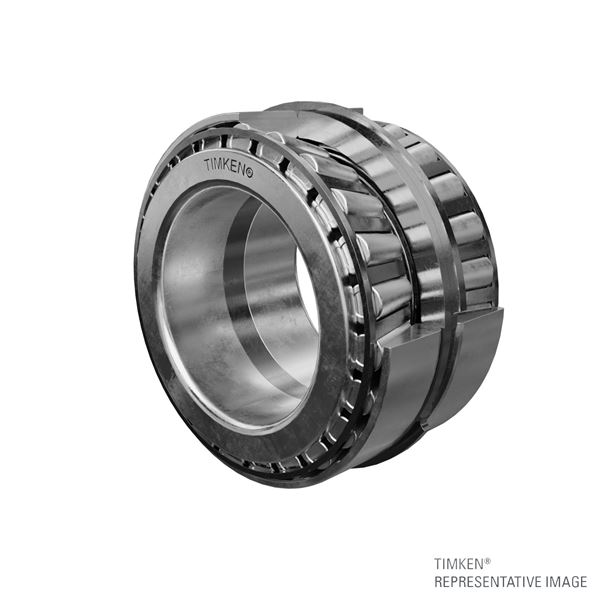

Timken LM48548 – LM48510 (LM48548XE – K106390R)
Tapered Roller Bearings - 2S (Matched Bearing Assembly, with snap ring spacer)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
LM48548 – LM48510 (LM48548XE – K106390R)
Specifications
Cone Part Number
LM48548
Cup Part Number
LM48510
Inner Spacer Part Number
LM48548XE
Outer Spacer Part Number
K106390R
Design Unit
Inch
Dimensions
d - Bore
34.925 mm
D - Cup Outer Diameter
65.088 mm
T - Width
49.276 mm
C - Width
41.148 mm
Snap Ring Diameter
67.46 mm
Snap Ring Width
3.56 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.600 mm
r - Cup Backface "To Clear" Radius2
1.27 mm
db - Cone Backface Backing Diameter
48 mm
Da - Cup Frontface Backing Diameter
61.00 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)
16700 N
C1 - Dynamic Radial Rating (1 million revolutions)3
112000 N
C4
10800 N
C905
29200 N
Factors
K - Factor6
1.55
e - ISO Factor7
0.38
Y1 - ISO Factor8
1.79
Y2 - ISO Factor9
2.67
