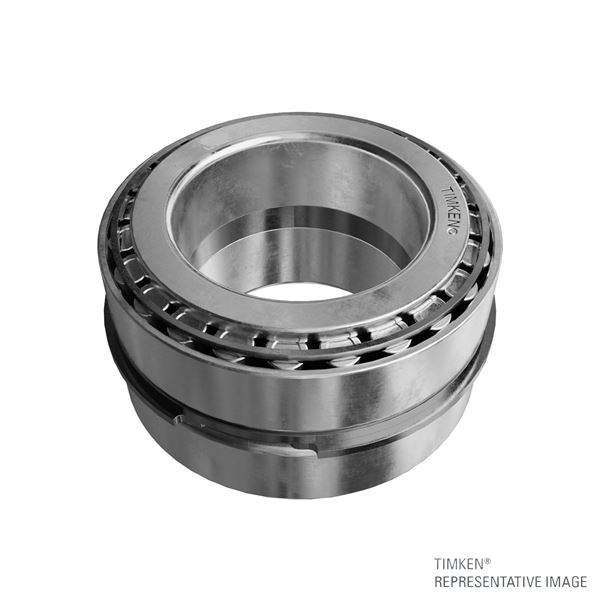

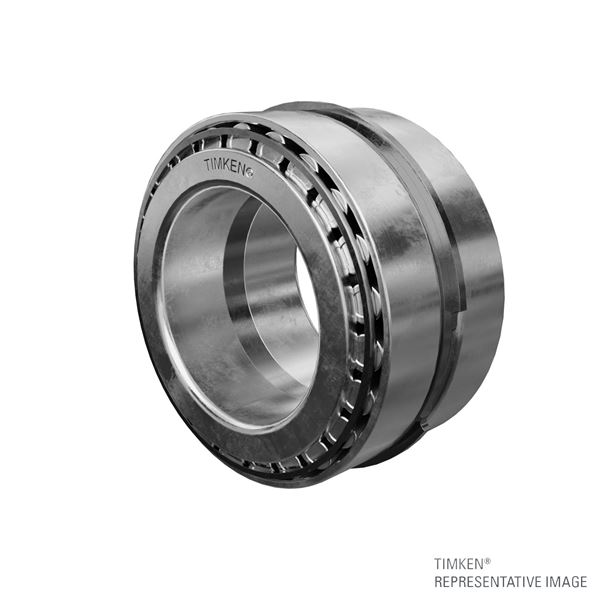

Timken M88048 – M88010 (K147783R – K528895R)
Tapered Roller Bearings - 2S (Matched Bearing Assembly, with snap ring spacer)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
M88048 – M88010 (K147783R – K528895R)
Specifications
Cone Part Number
M88048
Cup Part Number
M88010
Inner Spacer Part Number
K147783R
Outer Spacer Part Number
K528895R
Design Unit
Inch
Dimensions
d - Bore
33.338 mm
D - Cup Outer Diameter
68.263 mm
T - Width
46.812 mm
C - Width
37.286 mm
Snap Ring Diameter
72.34 mm
Snap Ring Width
2.36 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
0.800 mm
r - Cup Backface "To Clear" Radius2
1.52 mm
db - Cone Backface Backing Diameter
42.5 mm
Da - Cup Frontface Backing Diameter
66.00 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)
19800 N
C1 - Dynamic Radial Rating (1 million revolutions)3
133000 N
C4
18500 N
C905
34400 N
Factors
K - Factor6
1.07
e - ISO Factor7
0.55
Y1 - ISO Factor8
1.24
Y2 - ISO Factor9
1.84
