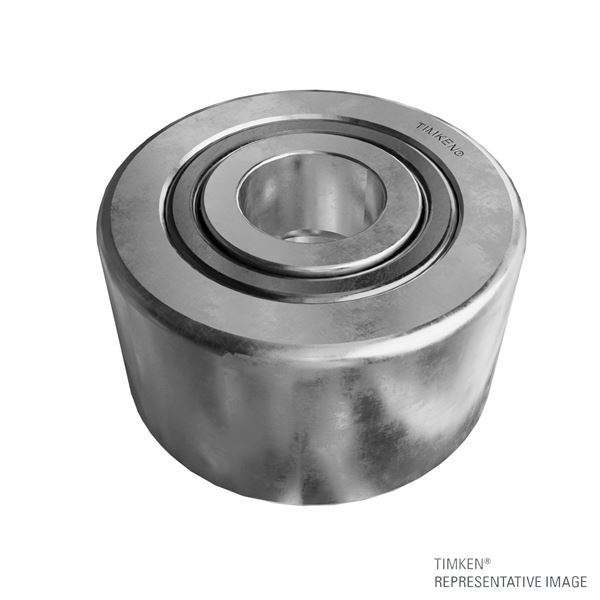

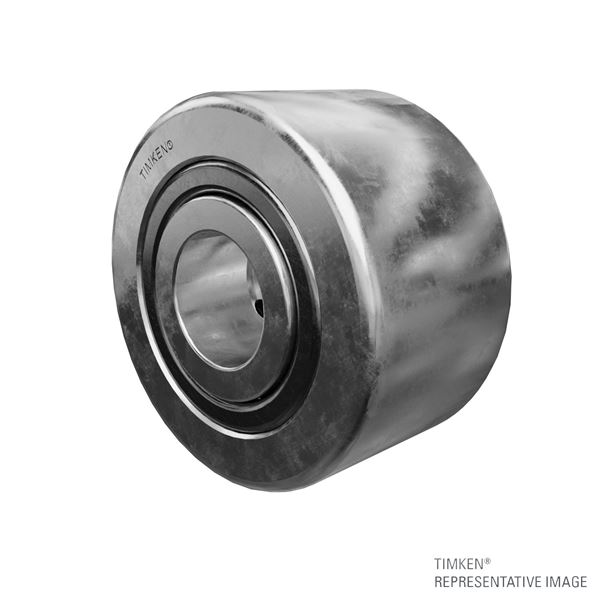

Timken NA48685SW – 48620D
Tapered Roller Bearings - TNA (Tapered Double, non-adjustable) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
NA48685SW – 48620D
Specifications
Cone Part Number
NA48685SW
Cup Part Number
48620D
Design Unit
Inch
Dimensions
d - Bore
142.875 mm
D - Cup Outer Diameter
200.025 mm
T - Bearing Width across Cones
93.665 mm
C - Double Cup Width
73.025 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.5 mm
r - Cup Backface "To Clear" Radius2
0.8 mm
db - Cone Backface Backing Diameter
158 mm
Da - Cup Frontface Backing Diameter
193.04 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
74300 N
C1 - Dynamic Radial Rating (1 million revolutions)4
499000 N
C5
42800 N
C906
129000 N
Factors
K - Factor7
1.74
e - ISO Factor8
0.34
Y1 - ISO Factor9
2.01
Y2 - ISO Factor10
2.99
