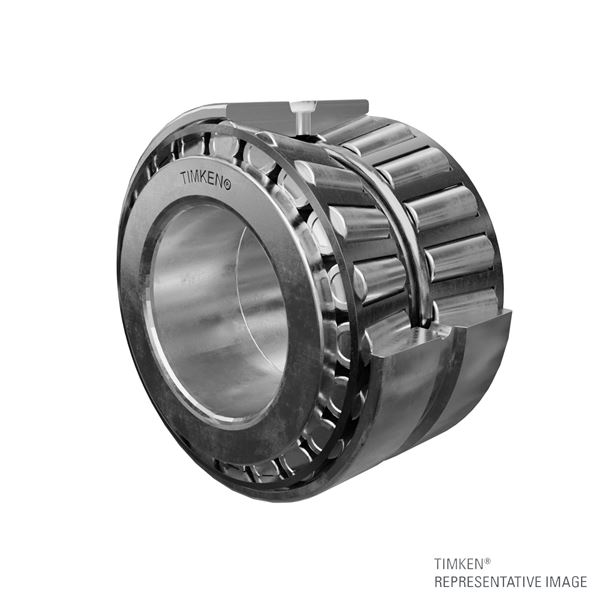

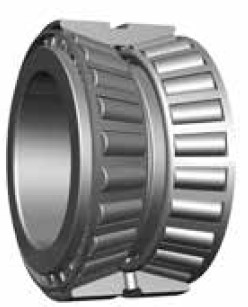

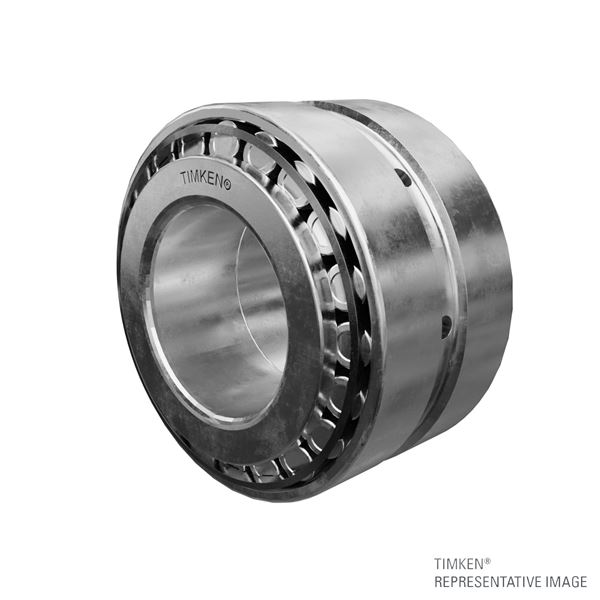

Timken NA567 – 563D
Tapered Roller Bearings - TNA (Tapered Double, non-adjustable) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
NA567 – 563D
Specifications
Cone Part Number
NA567
Cup Part Number
563D
Related Assembly Number(s)
NA567-90079
Design Unit
Inch
Dimensions
d - Bore
73.025 mm
D - Cup Outer Diameter
127 mm
T - Bearing Width across Cones
80.962 mm
C - Double Cup Width
65.088 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
6.8 mm
r - Cup Backface "To Clear" Radius2
1.5 mm
db - Cone Backface Backing Diameter
94 mm
Da - Cup Frontface Backing Diameter
119.13 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
50900 N
C1 - Dynamic Radial Rating (1 million revolutions)4
342000 N
C5
31700 N
C906
88600 N
Factors
K - Factor7
1.61
e - ISO Factor8
0.36
Y1 - ISO Factor9
1.86
Y2 - ISO Factor10
2.76
