Timken SMN403WS
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Manufacturing Part Number
SMN403WS
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
SMN..WS
Basic Outer Ring Size
321

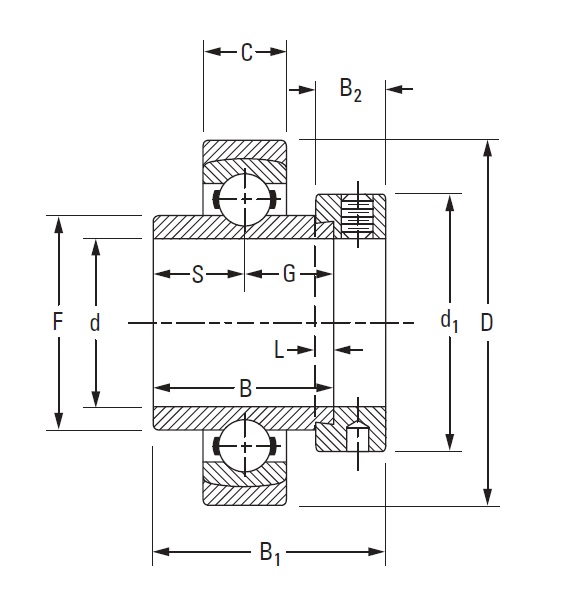

Dimensions
Outside Diameter D
225 mm
Inner Ring Width B
104.78 mm
Outside Ring Width C
49 mm
Radius r
1.02 mm
Center of Bearing from End S
52.34 mm
Set Screw Size
5/8
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
96.32 mm
Dimension B1
122.13 mm
Dimension B2
23.8 mm
Dimension F
141.19 mm
Basic Load Ratings
Static Load Rating
202394 N
Dynamic Load Rating
253548 N
