Timken SMN415W
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
SMN..W
Collar No.
SN415K
Basic Outer Ring Size
326

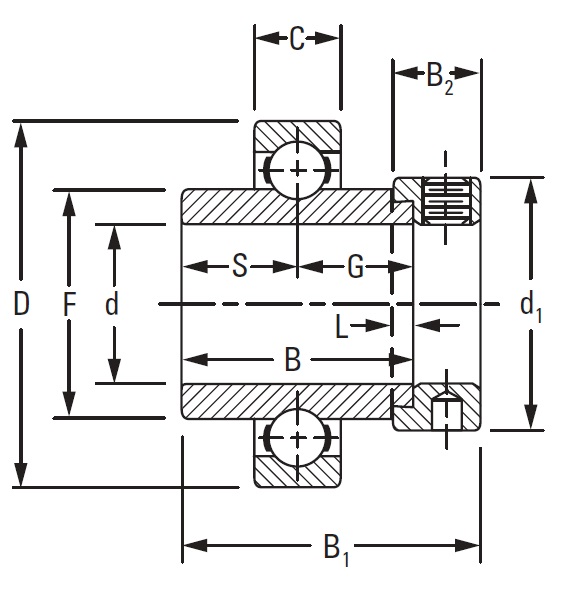

Dimensions
Outside Diameter D
280 mm
Inner Ring Width B
106.36 mm
Outside Ring Width C
59 mm
Radius r
0.6 mm
Center of Bearing from End S
53.98 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
206.38 mm
Dimension B1
150.81 mm
Dimension B2
42.86 mm
Dimension F
176.56 mm
Dimension G
61.91 mm
Dimension L
7.94 mm
Basic Load Ratings
Static Load Rating
327400 N
Dynamic Load Rating
347400 N
