Timken SMN407W
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
SMN..W
Collar No.
SN407K
Basic Outer Ring Size
322

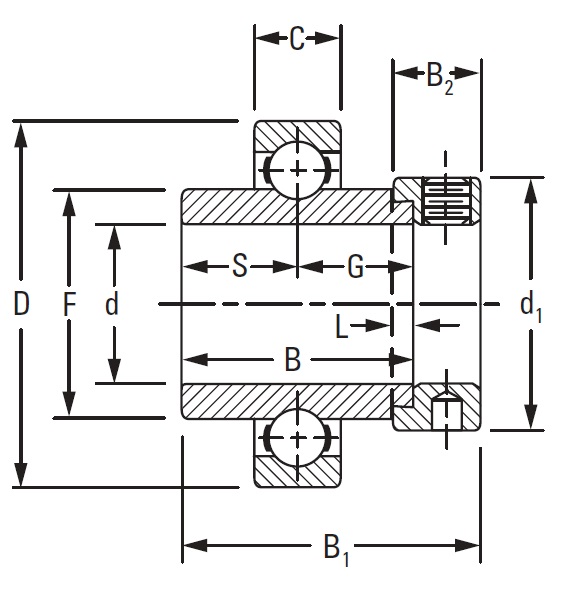

Dimensions
Outside Diameter D
240 mm
Inner Ring Width B
106.36 mm
Outside Ring Width C
50 mm
Radius r
0.6 mm
Center of Bearing from End S
49.21 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
165.1 mm
Dimension B1
141.29 mm
Dimension B2
42.86 mm
Dimension F
142.75 mm
Dimension G
57.15 mm
Dimension L
7.94 mm
Basic Load Ratings
Static Load Rating
245000 N
Dynamic Load Rating
285100 N
