Timken SMN415WS
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Manufacturing Part Number
SMN415WS
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
SMN..WS
Collar No.
SN415K
Basic Outer Ring Size
326

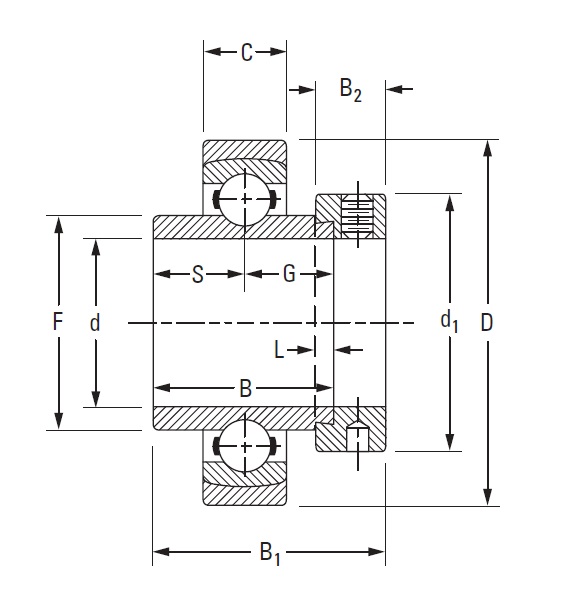

Dimensions
Outside Diameter D
280 mm
Inner Ring Width B
115.89 mm
Outside Ring Width C
59 mm
Radius r
1.02 mm
Center of Bearing from End S
53.88 mm
Set Screw Size
5/8
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
206.5 mm
Dimension B1
150.67 mm
Dimension B2
42.9 mm
Dimension F
176.42 mm
Basic Load Ratings
Static Load Rating
328278 N
Dynamic Load Rating
343847 N
