INA 3005-2Z
Angular Contact Ball Bearings

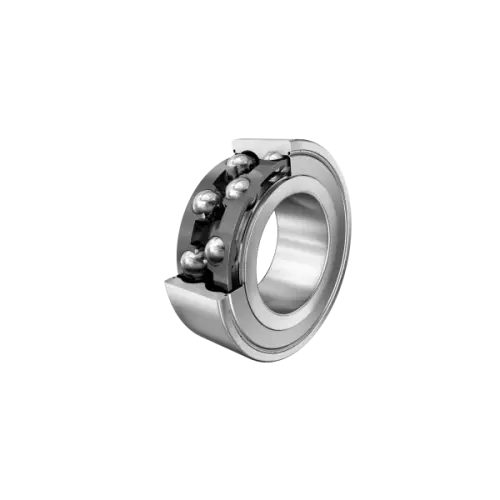

Angular contact ball bearing 30..-B-2Z-TVH, double row, shields, plastic cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

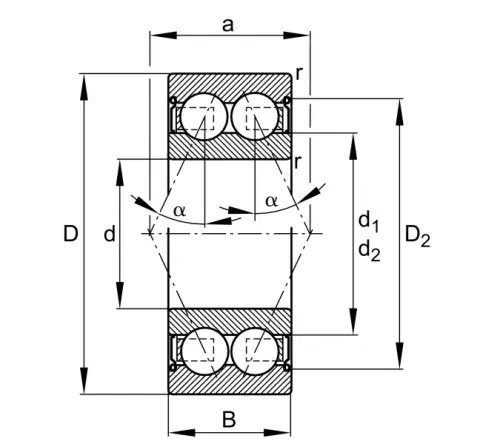

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
47 mm
Outside diameter
B
16 mm
Width
Cr
15,200 N
Basic dynamic load rating, radial
C0r
10,900 N
Basic static load rating, radial
Cur
570 N
Fatigue load limit, radial
CG
11,900 1/min
Limiting speed
nϑr
11,100 1/min
Reference speed
≈m
0.106 kg
Weight

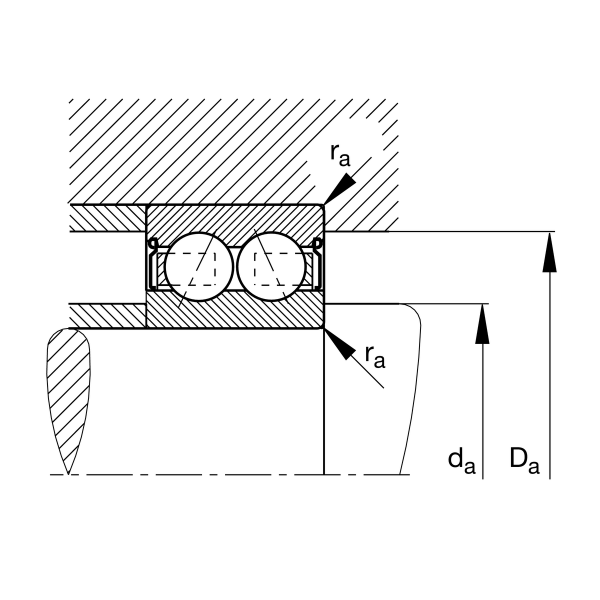

Mounting dimensions
da min
28.2 mm
Minimum diameter shaft shoulder
da min
43.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
