INA 3006
Angular Contact Ball Bearings

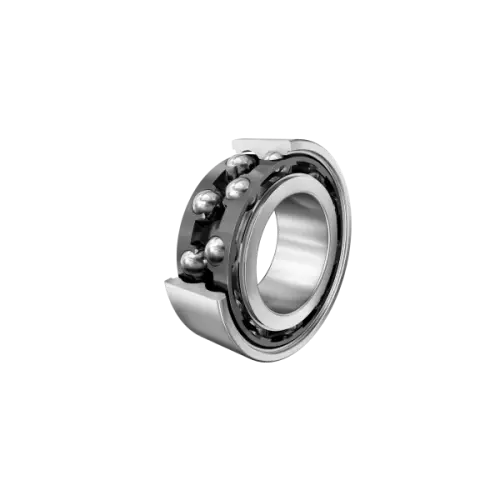

Angular contact ball bearing 30..-B-TVH, double row, plastic cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

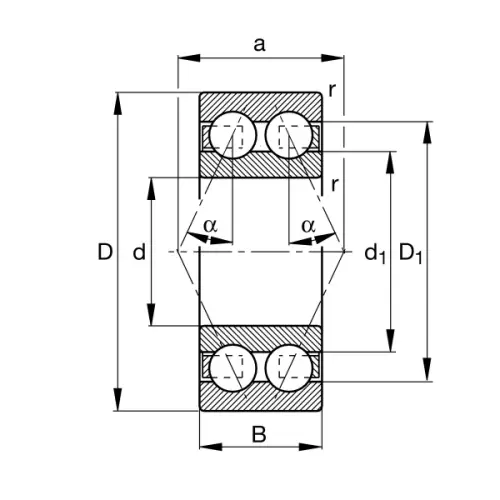

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
55 mm
Outside diameter
B
19 mm
Width
Cr
19,900 N
Basic dynamic load rating, radial
C0r
15,400 N
Basic static load rating, radial
Cur
800 N
Fatigue load limit, radial
CG
13,500 1/min
Limiting speed
nϑr
10,100 1/min
Reference speed
≈m
0.16 kg
Weight

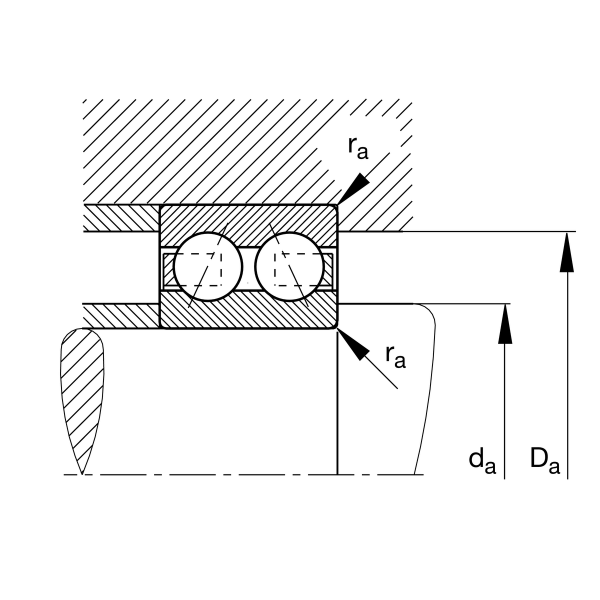

Mounting dimensions
da min
34.6 mm
Minimum diameter shaft shoulder
da min
50.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
