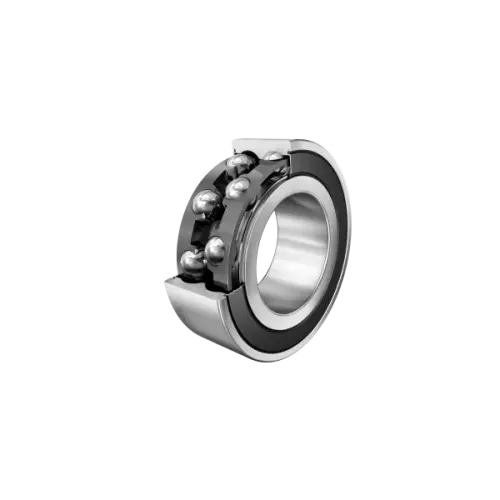

INA 3805-2RS
Angular Contact Ball Bearings
Angular contact ball bearing 38..-B-2RS-TVH, double row, seals, plastic cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

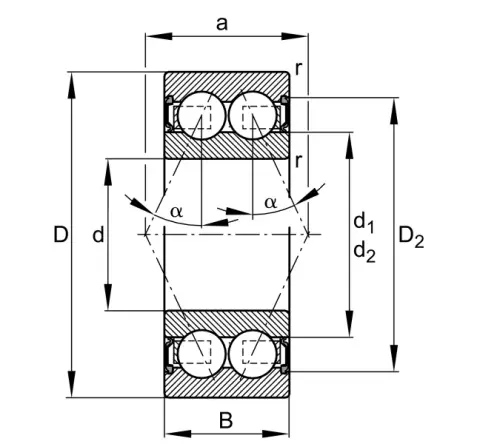

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
37 mm
Outside diameter
B
10 mm
Width
Cr
5,900 N
Basic dynamic load rating, radial
C0r
5,500 N
Basic static load rating, radial
Cur
285 N
Fatigue load limit, radial
CG
9,300 1/min
Limiting speed
≈m
36 g
Weight

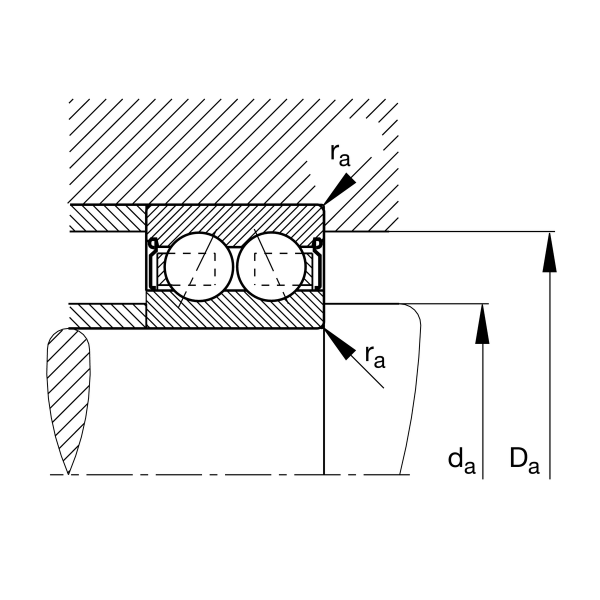

Mounting dimensions
da min
27 mm
Minimum diameter shaft shoulder
da min
35 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
