INA 3806-2RS
Angular Contact Ball Bearings

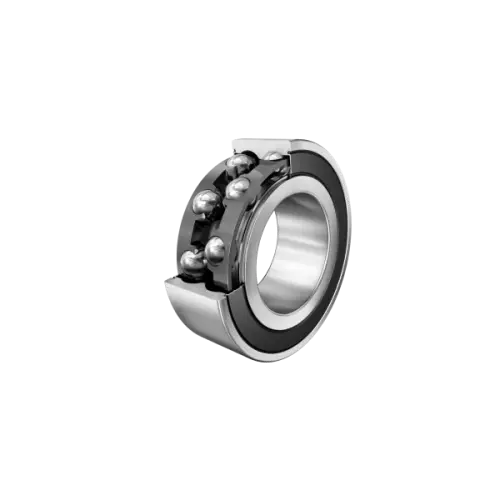

Angular contact ball bearing 38..-B-2RS-TVH, double row, seals, plastic cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

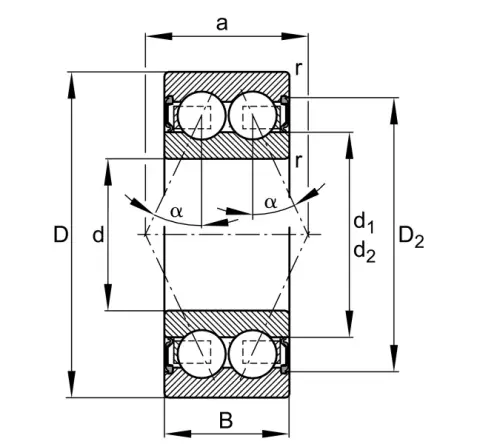

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
42 mm
Outside diameter
B
10 mm
Width
Cr
6,100 N
Basic dynamic load rating, radial
C0r
6,000 N
Basic static load rating, radial
Cur
320 N
Fatigue load limit, radial
CG
8,100 1/min
Limiting speed
≈m
0.037 kg
Weight

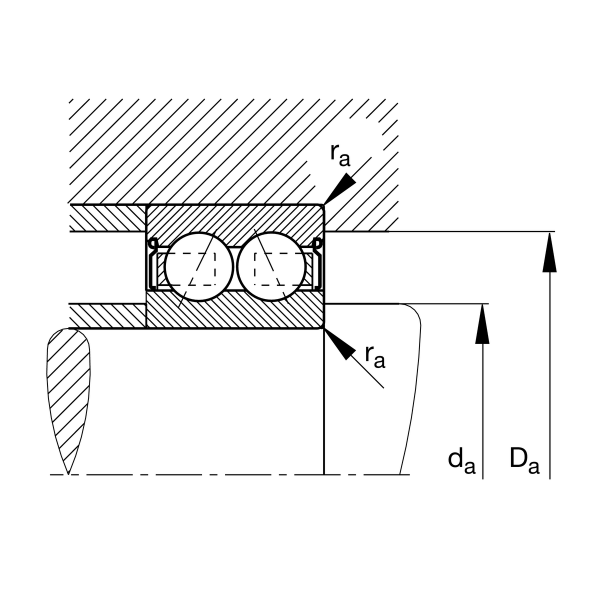

Mounting dimensions
da min
32 mm
Minimum diameter shaft shoulder
da min
40 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
