INA 3808-2Z
Angular Contact Ball Bearings

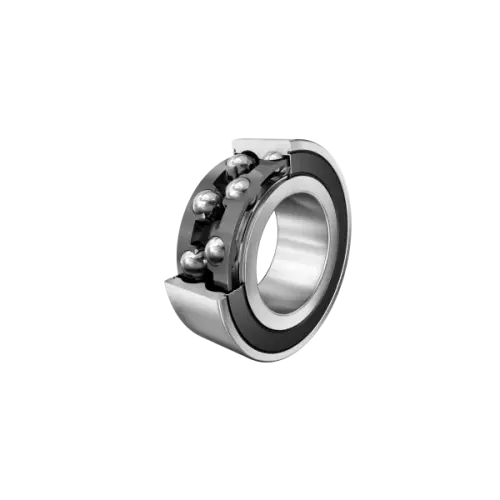

Angular contact ball bearing 38..-B-2RZ-TVH, double row, shields, plastic cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

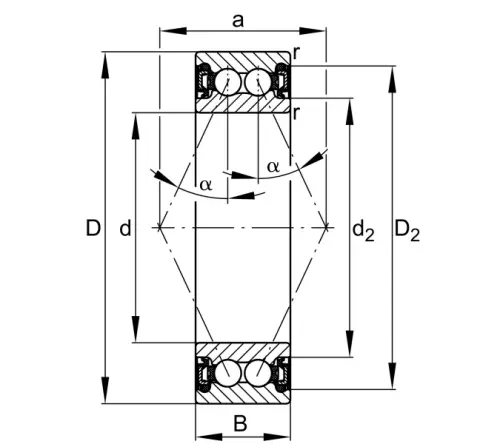

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
52 mm
Outside diameter
B
10 mm
Width
Cr
6,900 N
Basic dynamic load rating, radial
C0r
7,600 N
Basic static load rating, radial
Cur
430 N
Fatigue load limit, radial
CG
10,300 1/min
Limiting speed
nϑr
6,300 1/min
Reference speed
≈m
0.046 kg
Weight

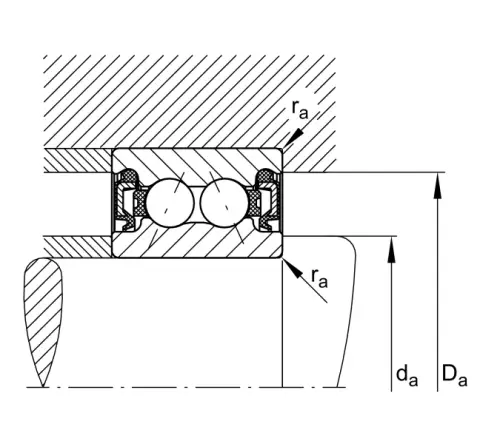

Mounting dimensions
da min
42 mm
Minimum diameter shaft shoulder
da min
50 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
