INA 3810
Angular Contact Ball Bearings
Angular contact ball bearing 38..-B-TVH, double row, plastic cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

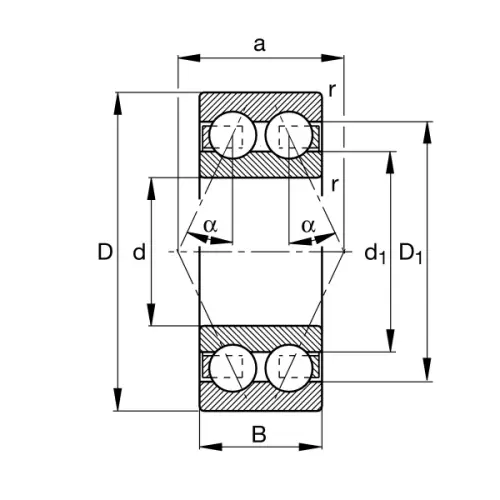

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
65 mm
Outside diameter
B
12 mm
Width
Cr
8,500 N
Basic dynamic load rating, radial
C0r
10,200 N
Basic static load rating, radial
Cur
590 N
Fatigue load limit, radial
CG
8,100 1/min
Limiting speed
nϑr
5,400 1/min
Reference speed
≈m
0.091 kg
Weight

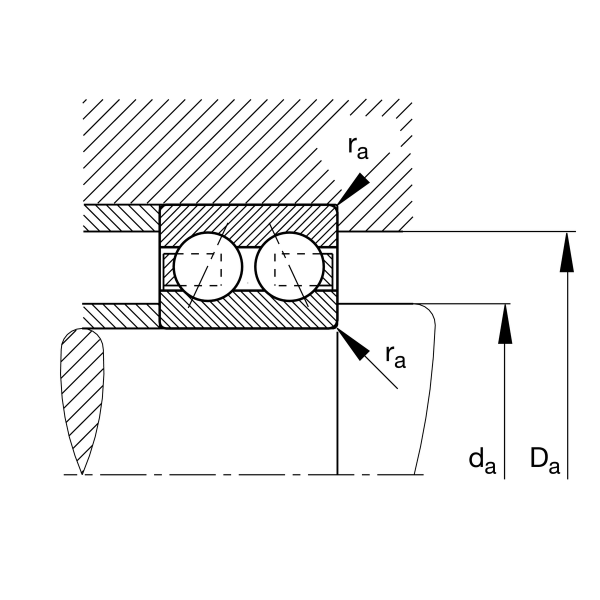

Mounting dimensions
da min
52 mm
Minimum diameter shaft shoulder
da min
63 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
