INA 3812-2Z-L404
Angular Contact Ball Bearings

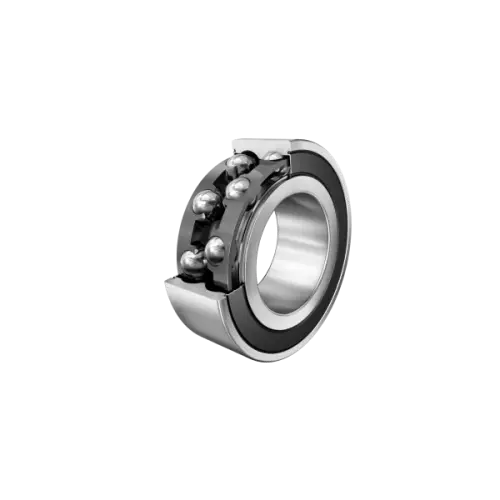

Angular contact ball bearing 38..-B-2RZ-TVH, double row, shields, plastic cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

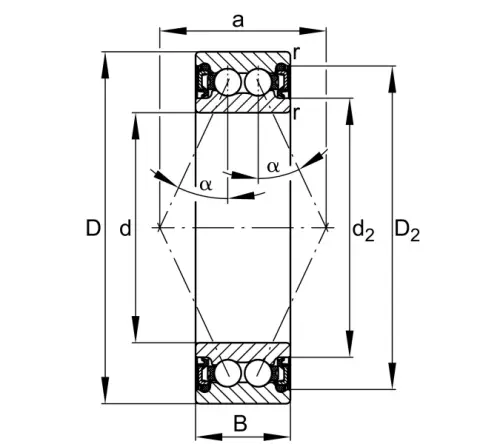

Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
78 mm
Outside diameter
B
14 mm
Width
Cr
14,200 N
Basic dynamic load rating, radial
C0r
17,100 N
Basic static load rating, radial
Cur
970 N
Fatigue load limit, radial
CG
6,600 1/min
Limiting speed
nϑr
4,700 1/min
Reference speed
≈m
0.151 kg
Weight

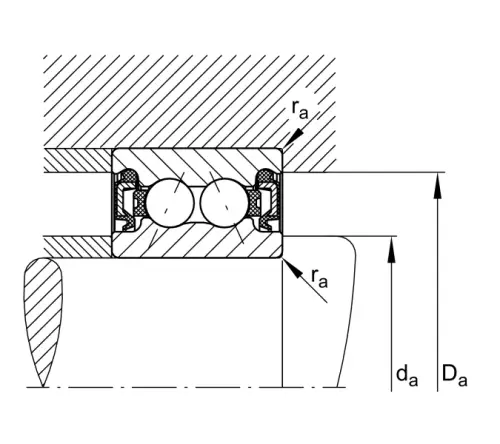

Mounting dimensions
da min
62 mm
Minimum diameter shaft shoulder
da min
76 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
