INA 3908-2RS
Angular Contact Ball Bearings

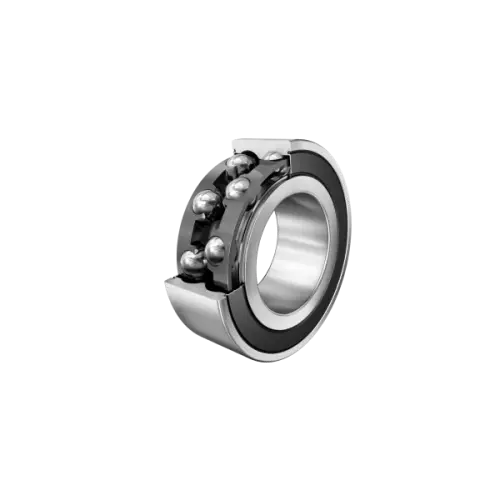

Angular contact ball bearing 39..-B-2RS-TVH, double row, seals, plastic cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

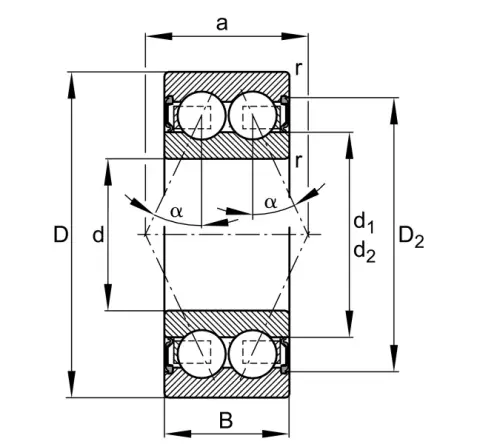

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
62 mm
Outside diameter
B
16 mm
Width
Cr
17,400 N
Basic dynamic load rating, radial
C0r
16,700 N
Basic static load rating, radial
Cur
870 N
Fatigue load limit, radial
CG
5,900 1/min
Limiting speed
≈m
0.16 kg
Weight

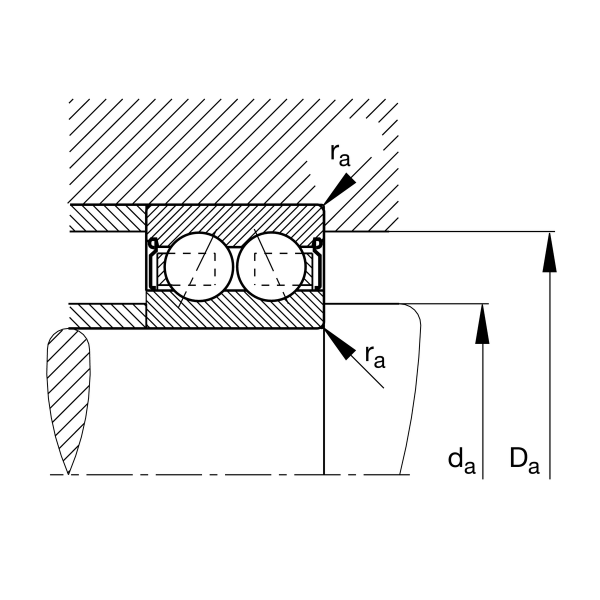

Mounting dimensions
da min
43.2 mm
Minimum diameter shaft shoulder
da min
58.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
