INA KR90-PP
Cam Rollers
Stud type track rollers KR..-PP, with axial guidance, plastic axial plain washers on both sides, optimized INA-profile
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

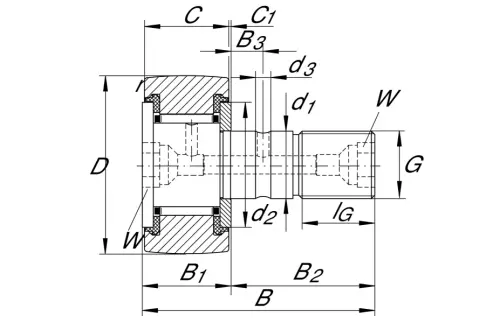

Main Dimensions & Performance Data
D
90 mm
Outside diameter
d1
30 mm
Fit diameter of roller stud / stud
B
100 mm
Width of the roller stud
Cr w
40,500 N
Basic dynamic load rating, radial
C0r w
84,000 N
Basic static load rating, radial
Cur w
11,900 N
Fatigue load limit, radial
nD G
1,300 1/min
Speed on permanent grease lubrication
≈m
1.942 kg
Weight
