INA NUKR80
Cam Rollers
Stud type track rollers NUKR, with axial guidance, full complement cylindrical roller set, labyrinth seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

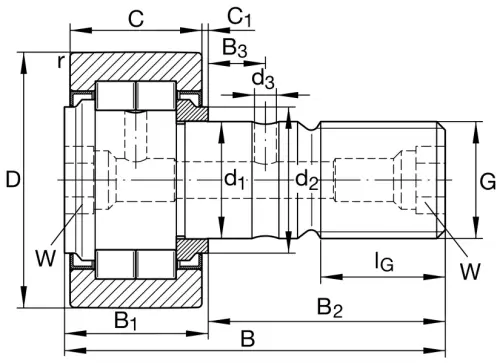

Main Dimensions & Performance Data
D
80 mm
Outside diameter
d1
30 mm
Fit diameter of roller stud / stud
B
100 mm
Width
Cr w
71,000 N
Basic dynamic load rating, radial
C0r w
103,000 N
Basic static load rating, radial
Cur w
14,400 N
Fatigue load limit, radial
nD G
1,800 1/min
Speed on permanent grease lubrication
F0r per
94,000 N
Permissible static load, radial
Fr per
47,000 N
Permissible dynamic load outer ring, radial
≈m
1.64 kg
Weight
