INA NUKR90
Cam Rollers
Stud type track rollers NUKR, with axial guidance, full complement cylindrical roller set, labyrinth seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

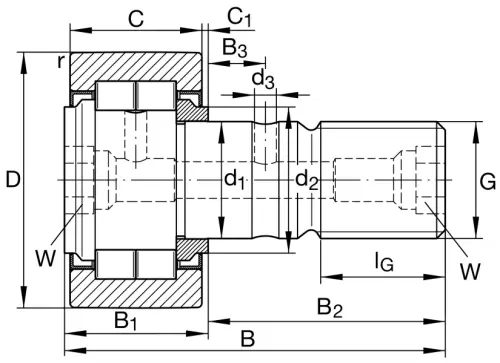

Main Dimensions & Performance Data
D
90 mm
Outside diameter
d1
30 mm
Fit diameter of roller stud / stud
B
100 mm
Width
Cr w
80,000 N
Basic dynamic load rating, radial
C0r w
123,000 N
Basic static load rating, radial
Cur w
17,000 N
Fatigue load limit, radial
nD G
1,800 1/min
Speed on permanent grease lubrication
F0r per
123,000 N
Permissible static load, radial
Fr per
76,000 N
Permissible dynamic load outer ring, radial
≈m
1.945 kg
Weight
