MCGILL GR-52-SS
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

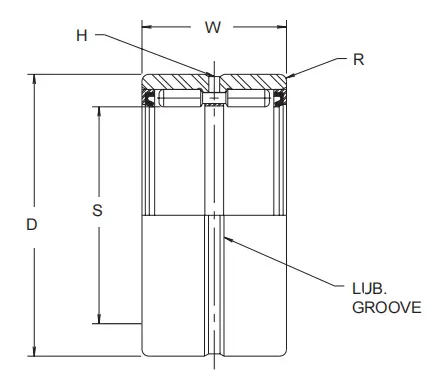

S SHAFT DIA.
3.2500
D*
4.2500
W
1.750
H
3/16
R MAX. FILLET FOR HOUSING
.080
HSG. BORE DIA. ROTATING HOUSING
4.2495
HSG. BORE DIA. STATIONARY HOUSING
4.2508
STATIC LOAD RATING (LBS.)
63800
BASIC DYNAMIC RATING (LBS.)
20050
