MCGILL GR-60-SS
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

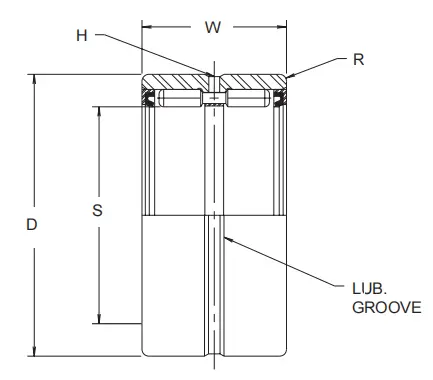

Description
S SHAFT DIA.
3.7500
D*
4.7500
W
2.000
H
3/16
R MAX. FILLET FOR HOUSING
.100
HSG. BORE DIA. ROTATING HOUSING
4.7495
HSG. BORE DIA. STATIONARY HOUSING
4.7508
STATIC LOAD RATING (LBS.)
92300
BASIC DYNAMIC RATING (LBS.)
25450
