MCGILL GR-12-SS
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

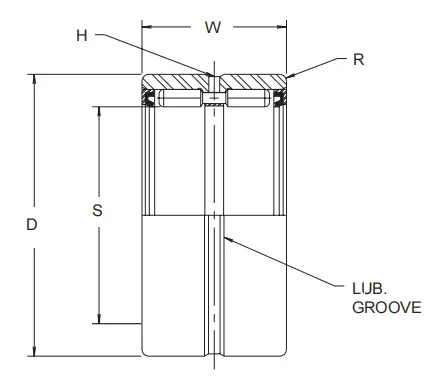

S SHAFT DIA.
.7500
D*
1.2500
W
1.000
H
5/64
R MAX. FILLET FOR HOUSING
.040
HSG. BORE DIA. ROTATING HOUSING
1.2497
HSG. BORE DIA. STATIONARY HOUSING
1.2507
STATIC LOAD RATING (LBS.)
7200
BASIC DYNAMIC RATING (LBS.)
3700
