MCGILL GR-14-SS
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

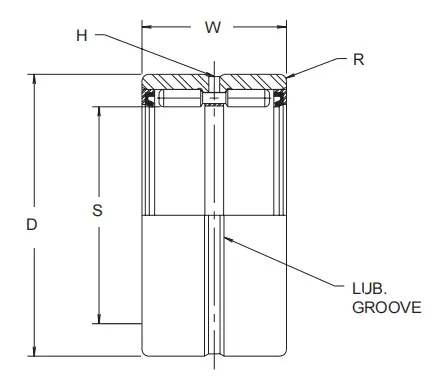

Description
S SHAFT DIA.
.8750
D*
1.3750
W
1.000
H
5/64
R MAX. FILLET FOR HOUSING
.040
HSG. BORE DIA. ROTATING HOUSING
1.3747
HSG. BORE DIA. STATIONARY HOUSING
1.3757
STATIC LOAD RATING (LBS.)
8400
BASIC DYNAMIC RATING (LBS.)
4150
