MCGILL MCYRD-15
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

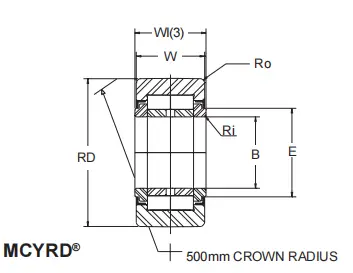

BORE DIA. B MAX.
15
BORE DIA. B MIN.
14.992
ROLLER DIA. RD
35
W.
18
BEARING WIDTH WI MAX.
19
BEARING WIDTH WI MIN.
18.79
CORNER HEIGHT MIN. Ro
0.6
CORNER HEIGHT MIN. Ri
0.3
WASHER DIA. E NOM.
20
ISO LOAD RATING DYNAMIC
23000
ISO LOAD RATING STATIC
27000
LOAD RATING AS TRACK ROLLER DYNAMIC
16000
LOAD RATING AS TRACK ROLLER STATIC
18000
LIMITING SPEED RPM
6500
BRG. MASS (APPROX.) Kg
0.099
