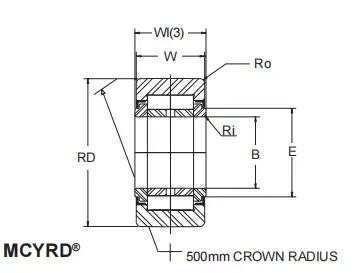

MCGILL MCYRD-20
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description
BORE DIA. B MAX.
20
BORE DIA. B MIN.
19.990
ROLLER DIA. RD
47
W.
24
BEARING WIDTH WI MAX.
25
BEARING WIDTH WI MIN.
24.79
CORNER HEIGHT MIN. Ro
1.0
CORNER HEIGHT MIN. Ri
0.3
WASHER DIA. E NOM.
27
ISO LOAD RATING DYNAMIC
38000
ISO LOAD RATING STATIC
48000
LOAD RATING AS TRACK ROLLER DYNAMIC
27000
LOAD RATING AS TRACK ROLLER STATIC
32000
LIMITING SPEED RPM
4200
BRG. MASS (APPROX.) Kg
0.245
