MCGILL MCYRD-25
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

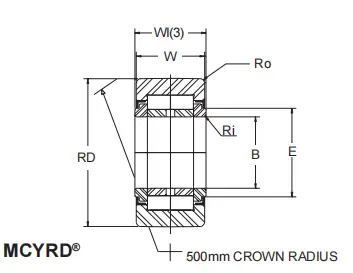

BORE DIA. B MAX.
25
BORE DIA. B MIN.
24.990
ROLLER DIA. RD
52
W.
24
BEARING WIDTH WI MAX.
25
BEARING WIDTH WI MIN.
24.79
CORNER HEIGHT MIN. Ro
1.0
CORNER HEIGHT MIN. Ri
0.3
WASHER DIA. E NOM.
31
ISO LOAD RATING DYNAMIC
42000
ISO LOAD RATING STATIC
57000
LOAD RATING AS TRACK ROLLER DYNAMIC
30000
LOAD RATING AS TRACK ROLLER STATIC
35000
LIMITING SPEED RPM
3400
BRG. MASS (APPROX.) Kg
0.281
