MCGILL MCYRD-17
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

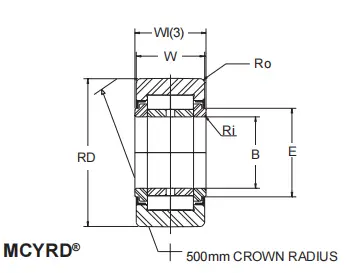

BORE DIA. B MAX.
17
BORE DIA. B MIN.
16.992
ROLLER DIA. RD
40
W.
20
BEARING WIDTH WI MAX.
21
BEARING WIDTH WI MIN.
20.79
CORNER HEIGHT MIN. Ro
1.0
CORNER HEIGHT MIN. Ri
0.3
WASHER DIA. E NOM.
22
ISO LOAD RATING DYNAMIC
25000
ISO LOAD RATING STATIC
31000
LOAD RATING AS TRACK ROLLER DYNAMIC
18000
LOAD RATING AS TRACK ROLLER STATIC
22000
LIMITING SPEED RPM
5500
BRG. MASS (APPROX.) Kg
0.147
