NTN RNAO-60X75X46ZW
Machined-Ring Needle Roller Bearings - Separable Type w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
RNAO-60X75X46ZW
Technical Specifications
Type
Machined-Ring Needle Roller Bearing, Separable Type
Configuration
Two
Bearing Design
w/o Inner Ring
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
6500 RPM
Limiting Speed - Grease
4400 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
170000 N
Dynamic Load Rating
76000 N
Weight
0.461 kg
Operating Temperature Range
-40 to 120 ºC

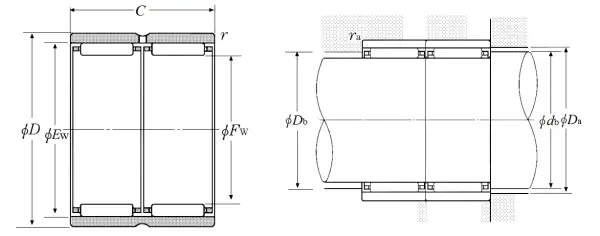

Dimensional Specifications
Fw
60.000 mm
D
75.000 mm
E
68.000 mm
C
46.000 mm
r
1.000 mm
Da max
70.000 mm
db min
67.200 mm
ras max
1.000 mm
