NTN RNAO-6X13X8
Machined-Ring Needle Roller Bearings - Separable Type w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Machined-Ring Needle Roller Bearing, Separable Type
Configuration
One
Bearing Design
w/o Inner Ring
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
37000 RPM
Limiting Speed - Grease
25000 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
2280 N
Dynamic Load Rating
2660 N
Weight
0.006 kg
Operating Temperature Range
-40 to 120 ºC

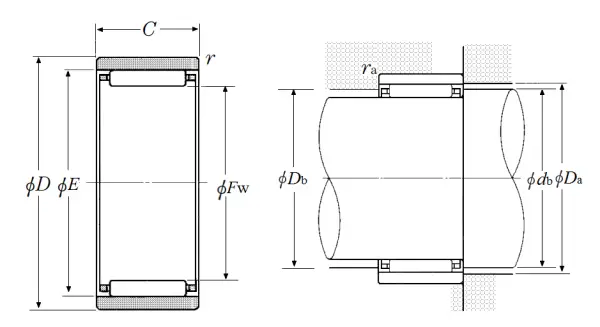

Dimensional Specifications
Fw
6.000 mm
D
13.000 mm
E
9.000 mm
C
8.000 mm
r
0.300 mm
Da max
11.000 mm
db min
8.700 mm
ras max
0.300 mm
