NTN RNAO-75X95X30
Machined-Ring Needle Roller Bearings - Separable Type w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Machined-Ring Needle Roller Bearing, Separable Type
Configuration
One
Bearing Design
w/o Inner Ring
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
5500 RPM
Limiting Speed - Grease
3600 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
157000 N
Dynamic Load Rating
67500 N
Weight
0.520 kg
Operating Temperature Range
-40 to 120 ºC

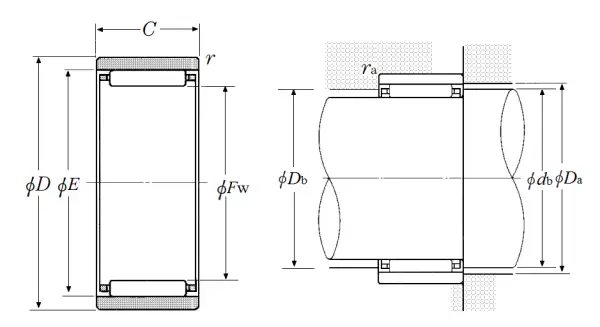

Dimensional Specifications
Fw
75.000 mm
D
95.000 mm
E
83.000 mm
C
30.000 mm
r
1.000 mm
Da max
90.000 mm
db min
82.200 mm
ras max
1.000 mm
