NTN RNAO-80X100X30
Machined-Ring Needle Roller Bearings - Separable Type w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
RNAO-80X100X30
Technical Specifications
Type
Machined-Ring Needle Roller Bearing, Separable Type
Configuration
One
Bearing Design
w/o Inner Ring
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
5000 RPM
Limiting Speed - Grease
3300 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
166000 N
Dynamic Load Rating
69000 N
Weight
0.580 kg
Operating Temperature Range
-40 to 120 ºC

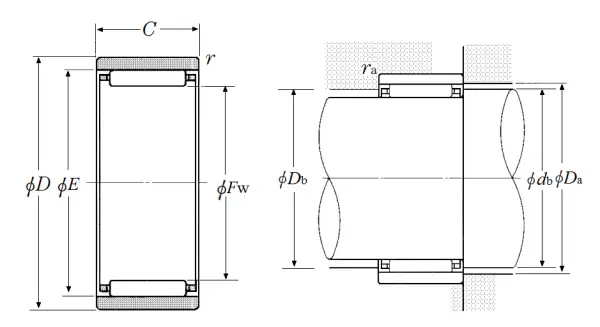

Dimensional Specifications
Fw
80.000 mm
D
100.000 mm
E
88.000 mm
C
30.000 mm
r
1.000 mm
Da max
95.000 mm
db min
87.200 mm
ras max
1.000 mm
