NTN RNAO-85X105X25
Machined-Ring Needle Roller Bearings - Separable Type w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
RNAO-85X105X25
Technical Specifications
Type
Machined-Ring Needle Roller Bearing, Separable Type
Configuration
One
Bearing Design
w/o Inner Ring
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
4700 RPM
Limiting Speed - Grease
3100 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
146000 N
Dynamic Load Rating
61500 N
Weight
0.459 kg
Operating Temperature Range
-40 to 120 ºC

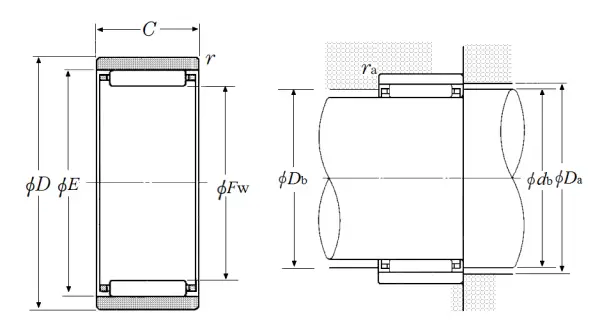

Dimensional Specifications
Fw
85.000 mm
D
105.000 mm
E
93.000 mm
C
25.000 mm
r
1.000 mm
Da max
100.000 mm
db min
92.200 mm
ras max
1.000 mm
