NTN RNAO-8X16X20ZW
Machined-Ring Needle Roller Bearings - Separable Type w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
RNAO-8X16X20ZW
Technical Specifications
Type
Machined-Ring Needle Roller Bearing, Separable Type
Configuration
Two
Bearing Design
w/o Inner Ring
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
32000 RPM
Limiting Speed - Grease
21000 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
8350 N
Dynamic Load Rating
7950 N
Weight
0.017 kg
Operating Temperature Range
-40 to 120 ºC

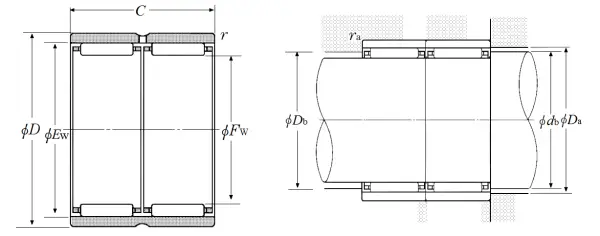

Dimensional Specifications
Fw
8.000 mm
D
16.000 mm
E
12.000 mm
C
20.000 mm
r
0.300 mm
Da max
14.000 mm
db min
11.700 mm
ras max
0.300 mm
