SKF APR-250X229X8.1-AD1

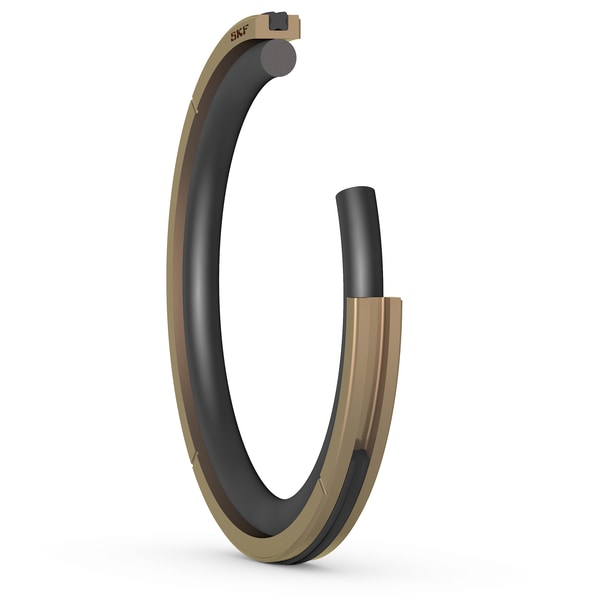

Piston seal with PTFE slide ring with incorporated seal element on dynamic surface
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
250.0 mm
Cylinder bore diameter
d
229.0 mm
Piston groove diameter
L
8.1 mm
Piston groove width
S
10.5 mm
Radial depth
R
0.9 mm
Groove radius
C
5.0 mm
Lead-in chamfer length
mass
0.0842 kg
Product net weight
