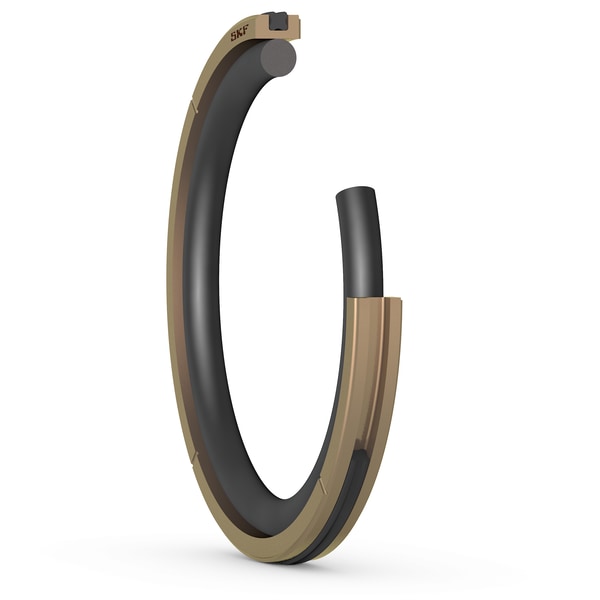

SKF APR2-1000-AD1
Piston seal with PTFE slide ring with incorporated seal element on dynamic surface
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
25.4 mm
Cylinder bore diameter
d
14.63 mm
Piston groove diameter
L
5.33 mm
Piston groove width
S
5.38 mm
Radial depth
R
0.38 mm
Groove radius
C
3.96 mm
Lead-in chamfer length
mass
0.0018 kg
Product net weight
