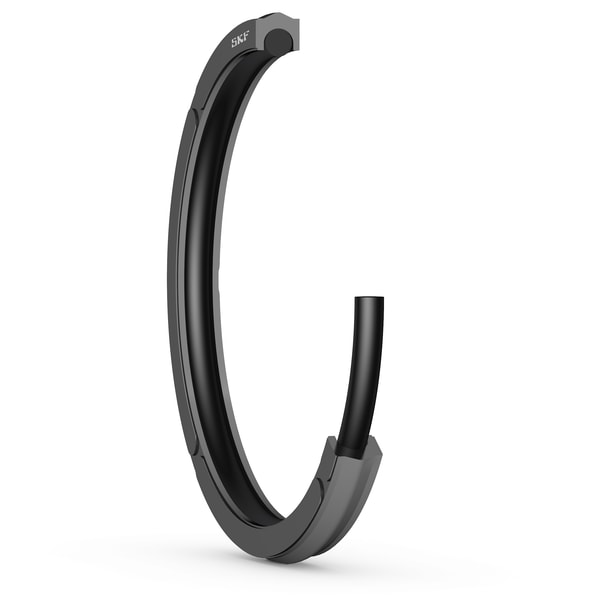

SKF CPV-439-J1S
Rubber-energized polyurethane piston seal
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
177.85 mm
Cylinder bore diameter
d
165.81 mm
Piston groove diameter
L
9.53 mm
Piston groove width
S
6.02 mm
Radial depth
R
0.81 mm
Groove radius
C
4.75 mm
Lead-in chamfer length
mass
0.0309 kg
Product net weight
