SKF CUT 110X89X8.1

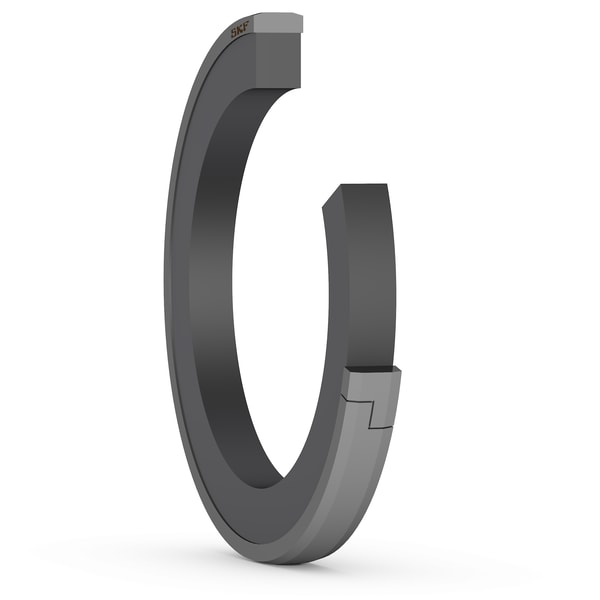

Step cut piston seal with rigid cap and rubber energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
110.0 mm
Cylinder bore diameter
D1
108.8 mm
Piston outside diameter
d
89.0 mm
Piston groove diameter
L
8.1 mm
Piston groove width
S
10.5 mm
Radial depth
R
0.9 mm
Groove radius
C
12.0 mm
Lead-in chamfer length
mass
0.0307 kg
Product net weight
