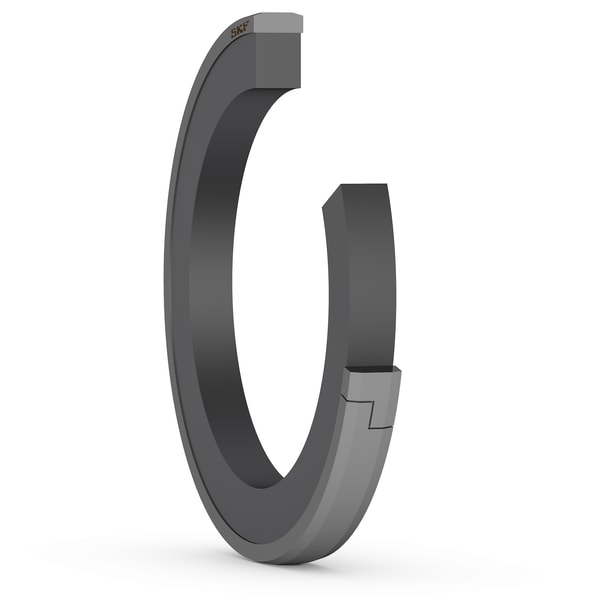

SKF CUT 165X144X8.1
Step cut piston seal with rigid cap and rubber energizer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
165.0 mm
Cylinder bore diameter
D1
163.8 mm
Piston outside diameter
d
144.0 mm
Piston groove diameter
L
8.1 mm
Piston groove width
S
10.5 mm
Radial depth
R
0.9 mm
Groove radius
C
12.0 mm
Lead-in chamfer length
mass
0.045 kg
Product net weight
