SKF CUT 240X225X8.1

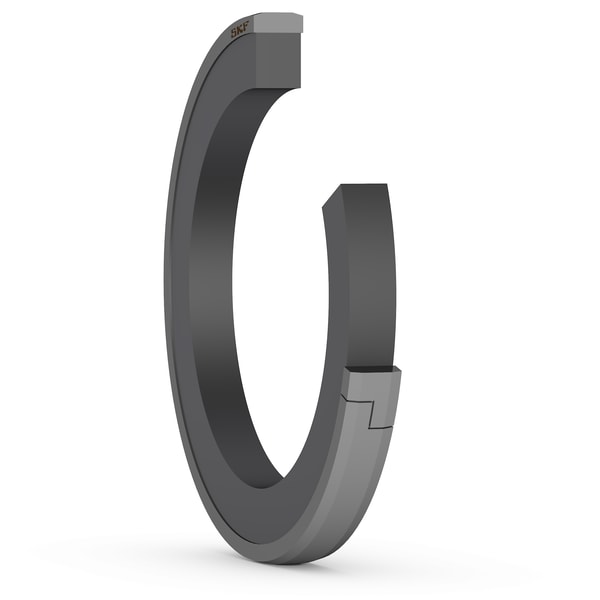

Step cut piston seal with rigid cap and rubber energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
240.0 mm
Cylinder bore diameter
D1
239.04 mm
Piston outside diameter
d
225.0 mm
Piston groove diameter
L
8.1 mm
Piston groove width
S
7.5 mm
Radial depth
R
0.5 mm
Groove radius
C
10.0 mm
Lead-in chamfer length
mass
0.0506 kg
Product net weight
