SKF CUT 40X29X4.2

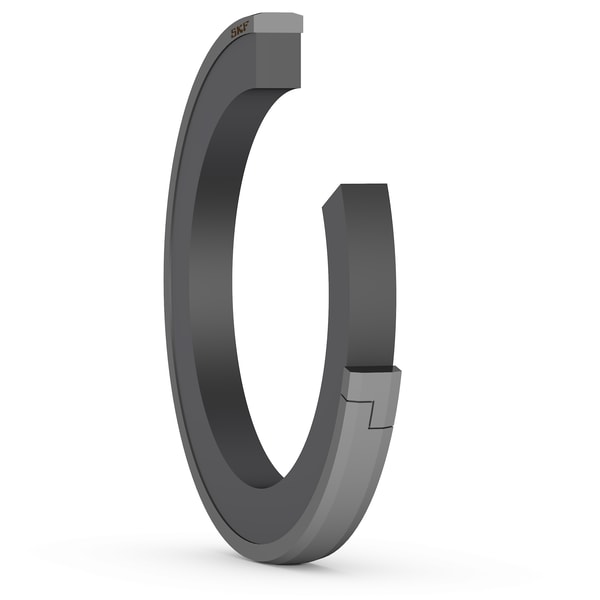

Step cut piston seal with rigid cap and rubber energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
40.0 mm
Cylinder bore diameter
D1
39.3 mm
Piston outside diameter
d
29.0 mm
Piston groove diameter
L
4.2 mm
Piston groove width
S
5.5 mm
Radial depth
R
0.5 mm
Groove radius
C
7.0 mm
Lead-in chamfer length
mass
0.003 kg
Product net weight
