SKF CUT 50X39X4.2

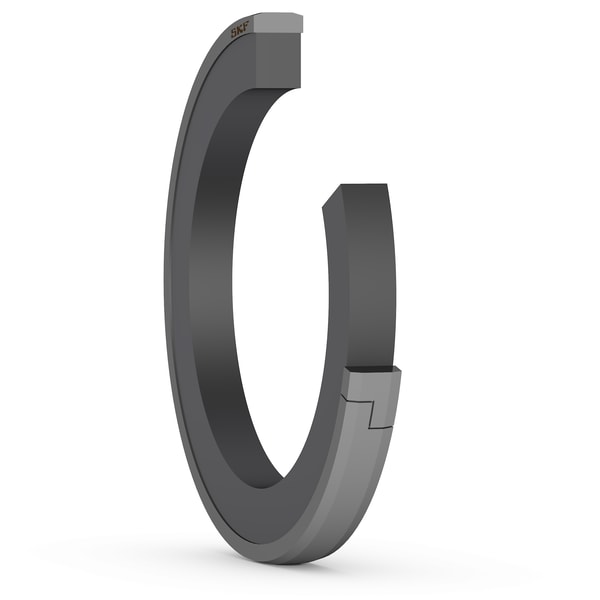

Step cut piston seal with rigid cap and rubber energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
50.0 mm
Cylinder bore diameter
D1
49.3 mm
Piston outside diameter
d
39.0 mm
Piston groove diameter
L
4.2 mm
Piston groove width
S
5.5 mm
Radial depth
R
0.5 mm
Groove radius
C
7.0 mm
Lead-in chamfer length
mass
0.004 kg
Product net weight
