SKF CUT 70X51.7X7

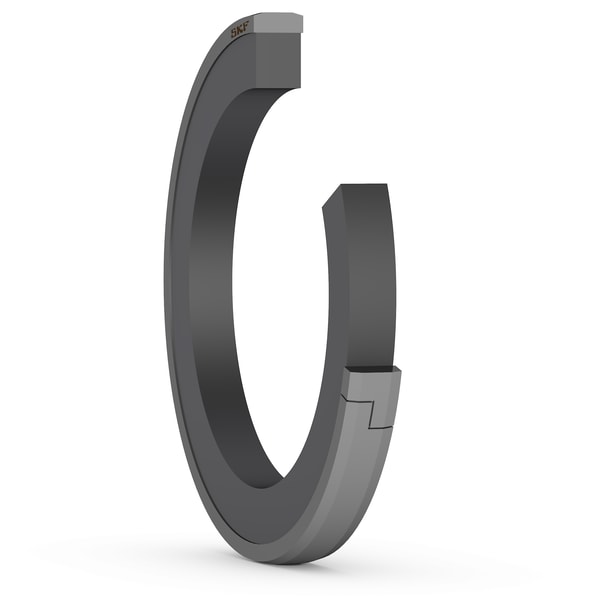

Step cut piston seal with rigid cap and rubber energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
70.0 mm
Cylinder bore diameter
D1
68.9 mm
Piston outside diameter
d
51.7 mm
Piston groove diameter
L
7.0 mm
Piston groove width
S
9.15 mm
Radial depth
R
0.5 mm
Groove radius
C
10.0 mm
Lead-in chamfer length
mass
0.0145 kg
Product net weight
