SKF GH 100X84.5X6.3-AD1

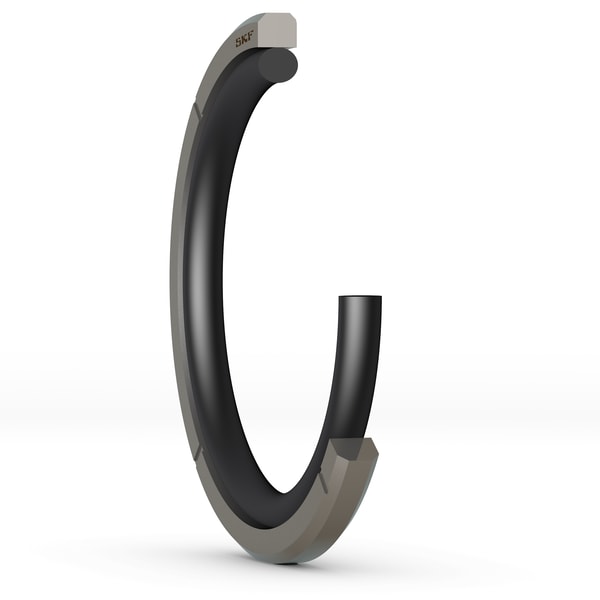

Piston seal with PTFE slide ring and O-ring energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
100.0 mm
Cylinder bore diameter
d
84.5 mm
Piston groove diameter
L
6.3 mm
Piston groove width
S
7.75 mm
Radial depth
R
0.9 mm
Groove radius
C
4.0 mm
Lead-in chamfer length
mass
0.026 kg
Product net weight
