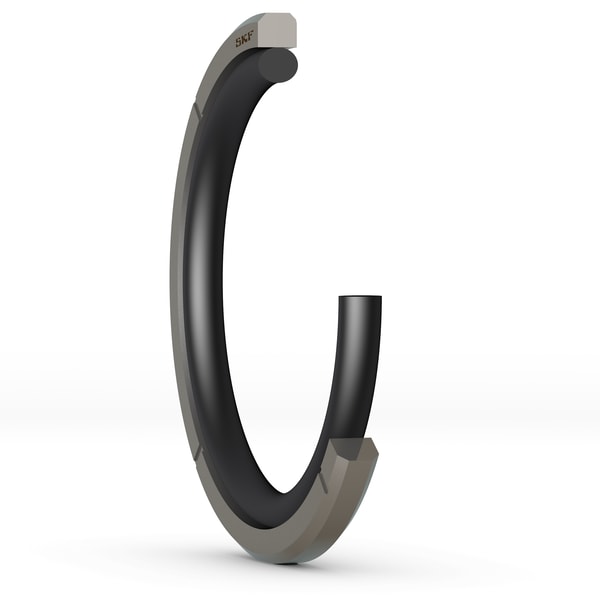

SKF GH 35X27.5X3.2-AD1
Piston seal with PTFE slide ring and O-ring energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
35.0 mm
Cylinder bore diameter
d
27.5 mm
Piston groove diameter
L
3.2 mm
Piston groove width
S
3.75 mm
Radial depth
R
0.5 mm
Groove radius
C
2.0 mm
Lead-in chamfer length
mass
0.0022 kg
Product net weight
