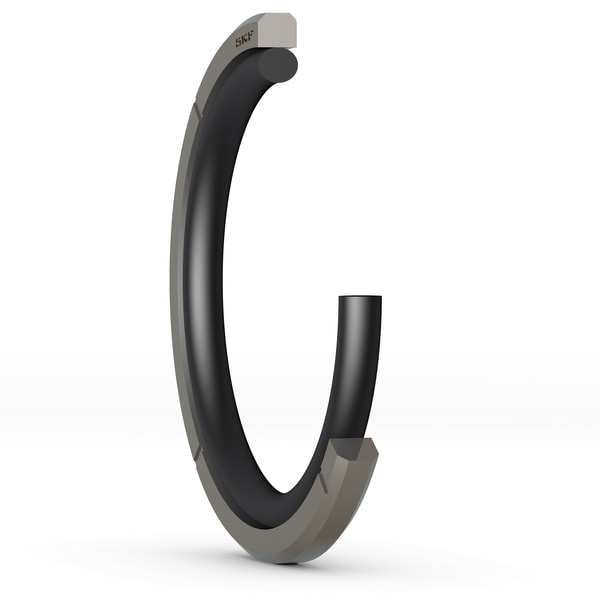

SKF GH 360X335.5X8.1-AD1
Piston seal with PTFE slide ring and O-ring energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
360.0 mm
Cylinder bore diameter
d
335.5 mm
Piston groove diameter
L
8.1 mm
Piston groove width
S
12.25 mm
Radial depth
R
0.9 mm
Groove radius
C
5.0 mm
Lead-in chamfer length
mass
0.216 kg
Product net weight
