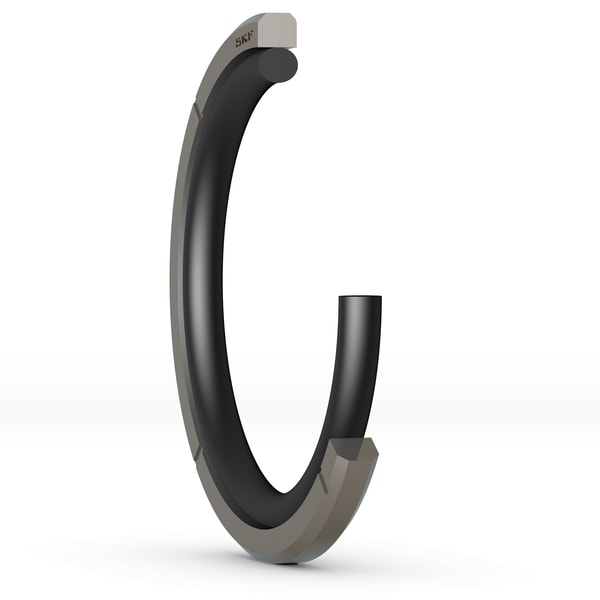

SKF GH 63X52X4.2-AD1
Piston seal with PTFE slide ring and O-ring energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
63.0 mm
Cylinder bore diameter
d
52.0 mm
Piston groove diameter
L
4.2 mm
Piston groove width
S
5.5 mm
Radial depth
R
0.5 mm
Groove radius
C
2.5 mm
Lead-in chamfer length
mass
0.008 kg
Product net weight
