SKF GH 70X59X4.2-AD1

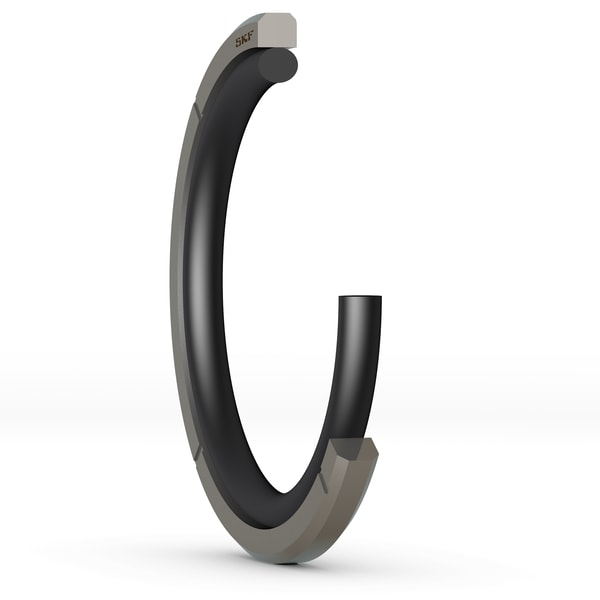

Piston seal with PTFE slide ring and O-ring energizer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
70.0 mm
Cylinder bore diameter
d
59.0 mm
Piston groove diameter
L
4.2 mm
Piston groove width
S
5.5 mm
Radial depth
R
0.9 mm
Groove radius
C
2.5 mm
Lead-in chamfer length
mass
0.0088 kg
Product net weight
